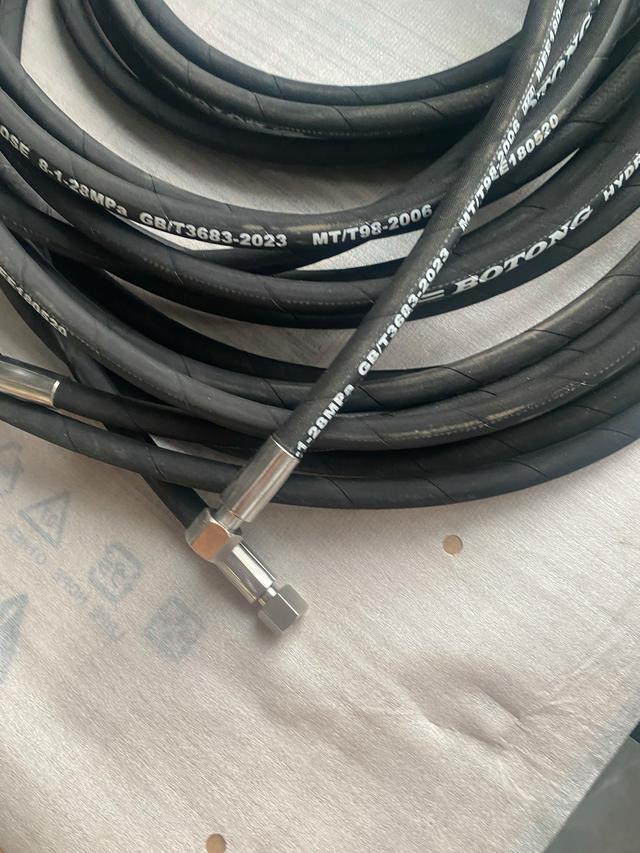

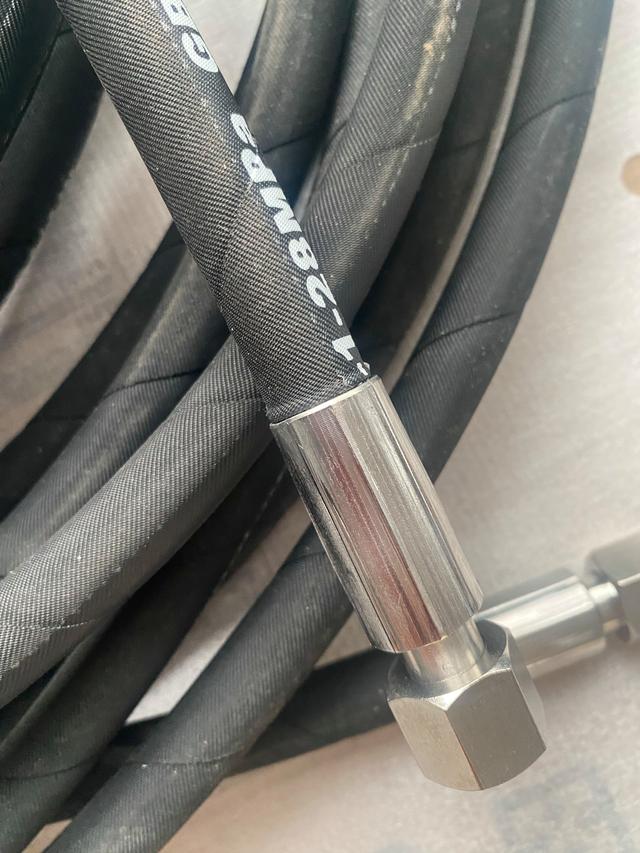

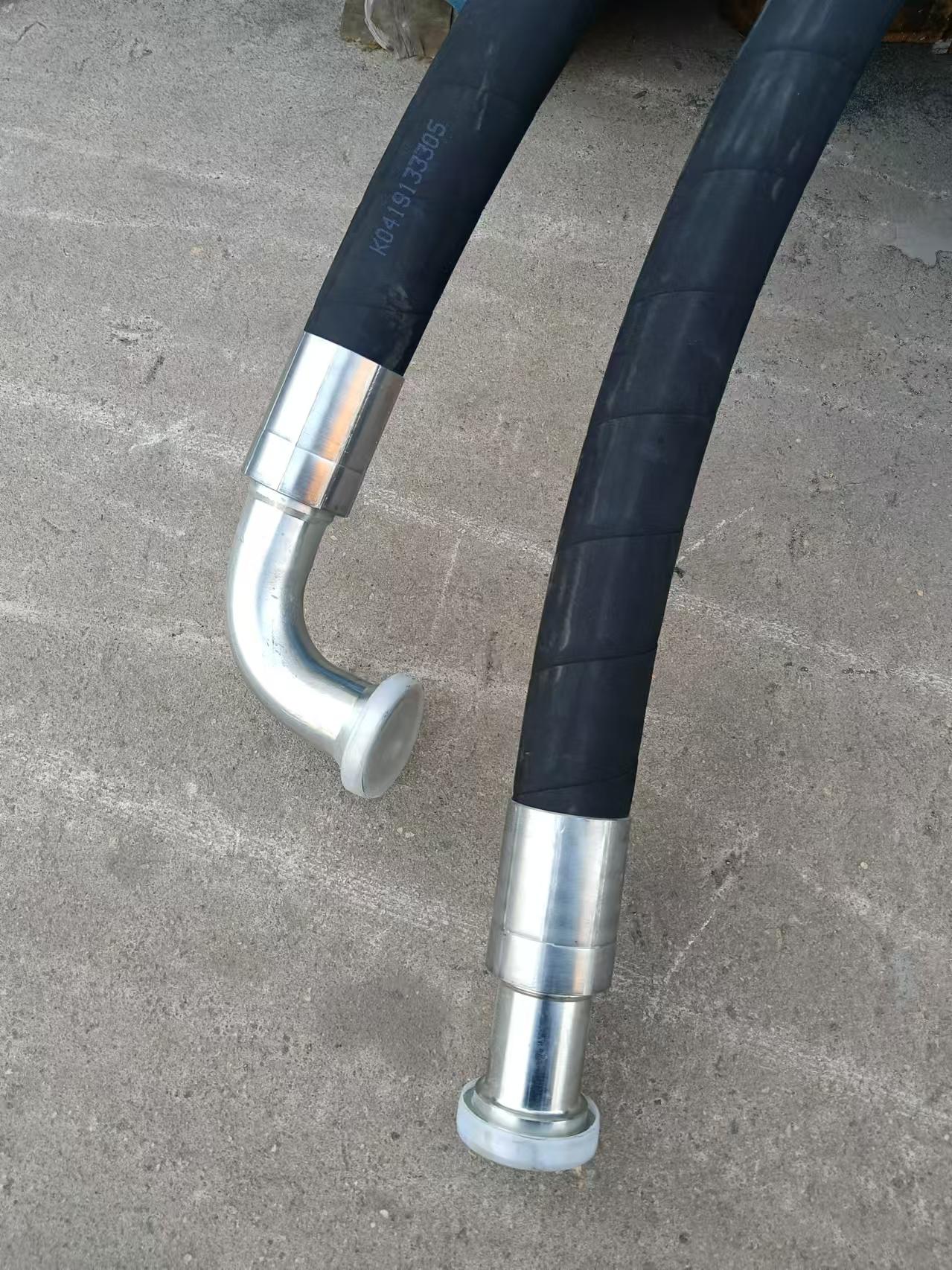

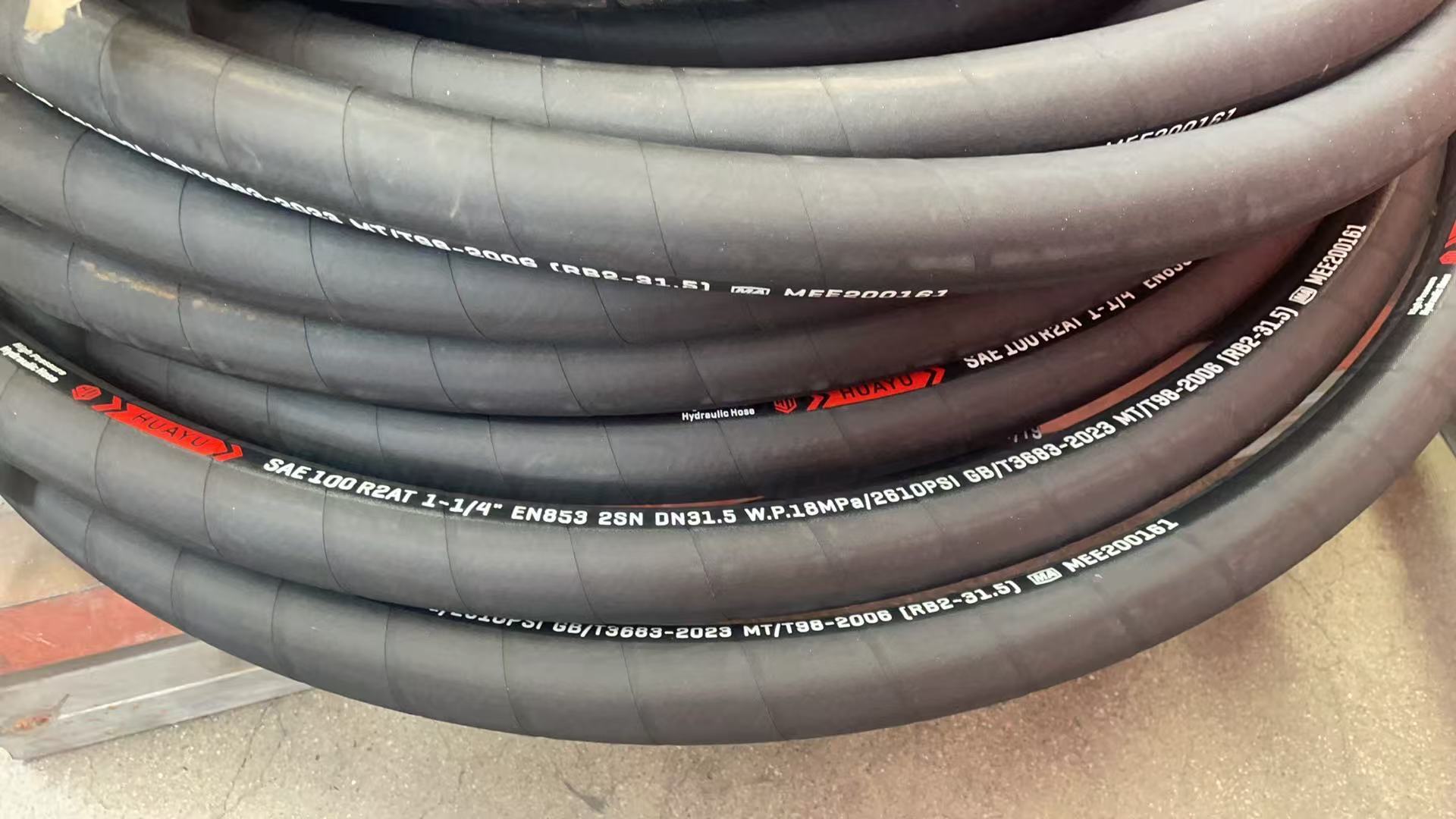

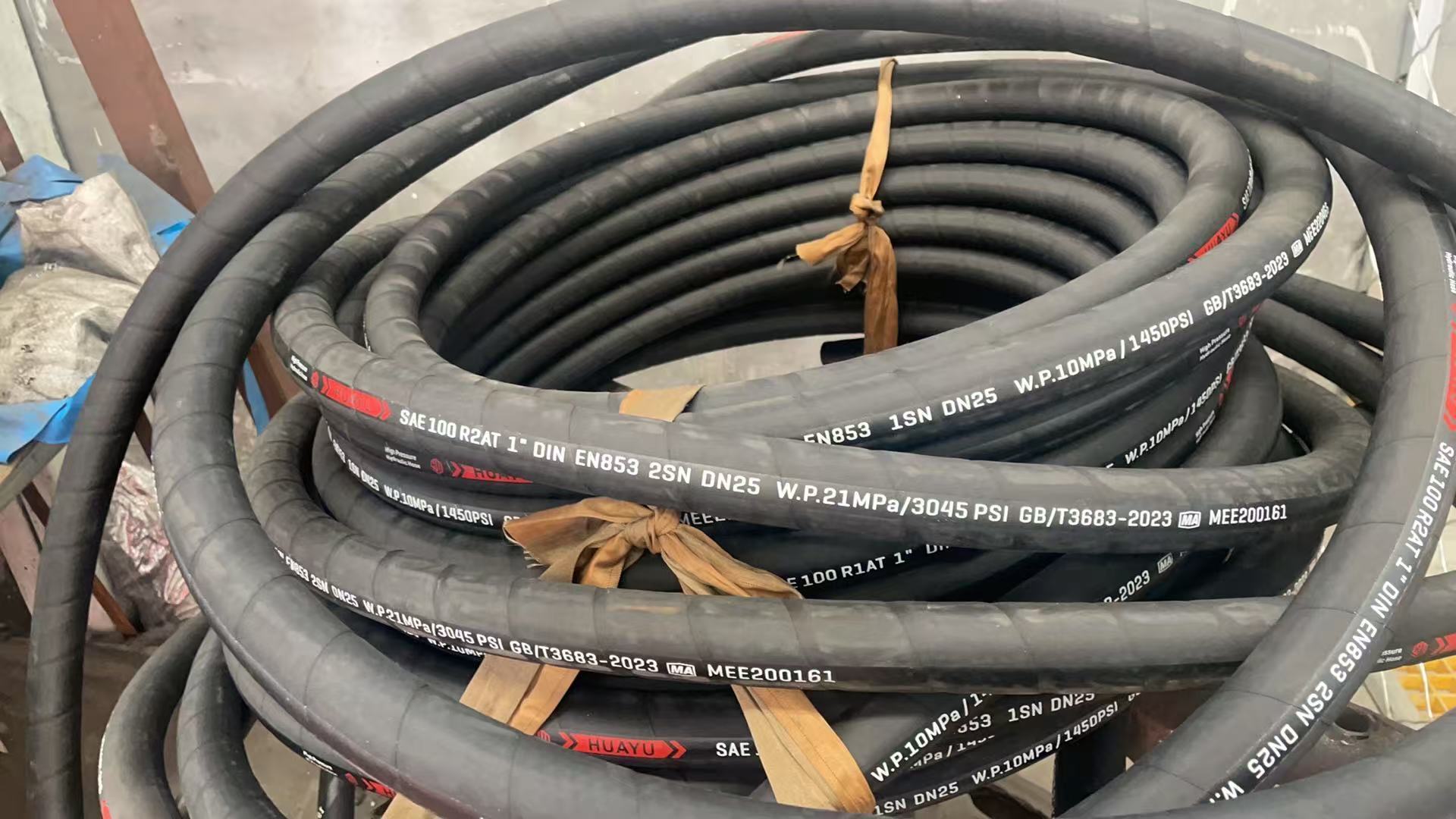

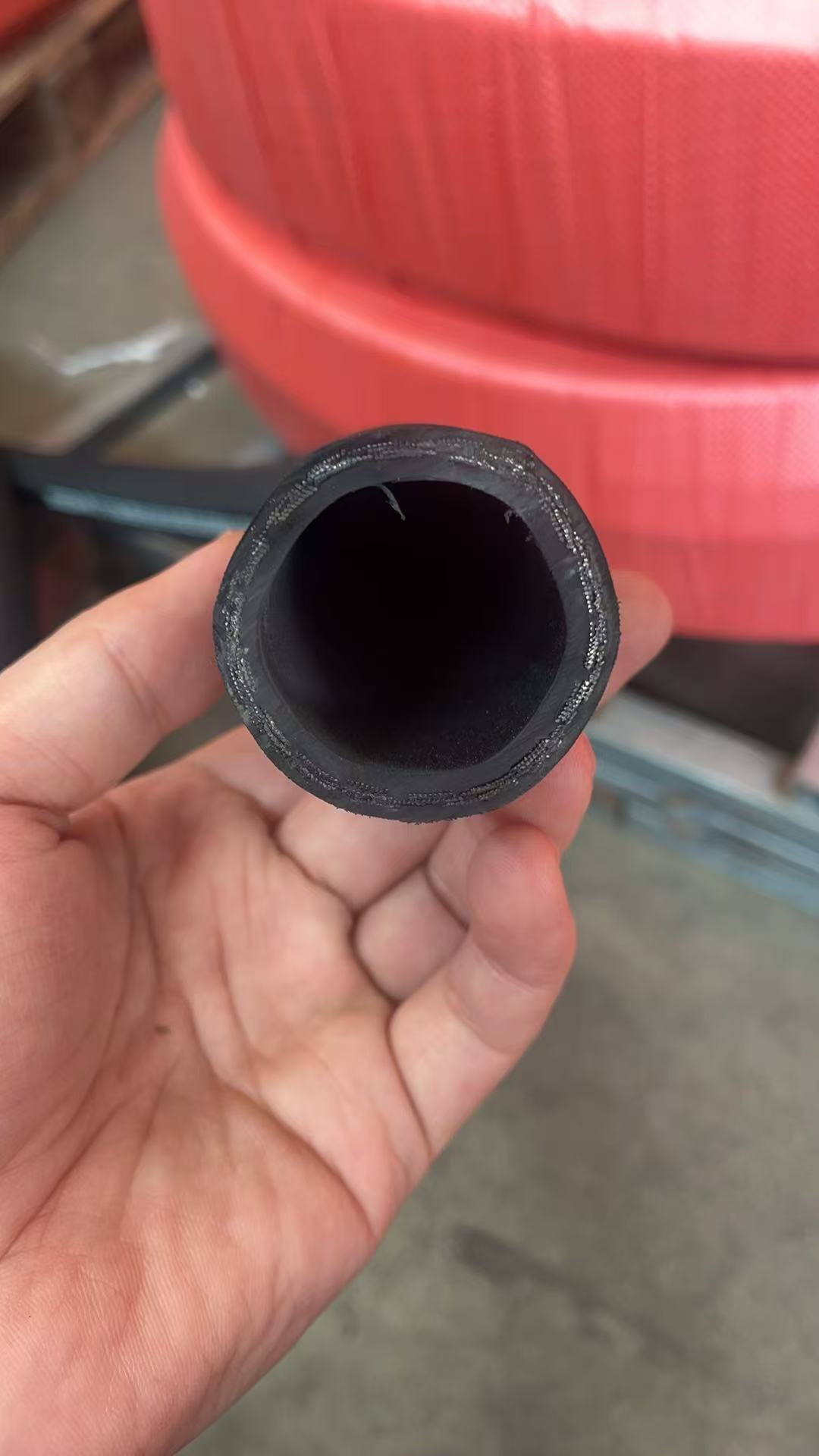

High-pressure steel wire braided oil pipe

It is used in the hydraulic systems of mine hydraulic supports, oilfield development, engineering construction, lifting and transportation, metallurgical forging, mining equipment, ships, injection molding machinery, agricultural machinery, various machine tools and the mechanization and automation of various industrial sectors to convey petroleum-based (such as mineral oil, soluble oil, hydraulic oil, fuel oil, lubricating oil) and water-based liquids (such as emulsions, oil-water) with certain pressure and temperature Pipelines for the transmission of emulsions, water, and other liquids. Specifications (one layer of weaving) Unit Price（USD） Specification unit price Three-layer braid unit price Specifications (four-layer winding) unit price Six-layer winding unit price Φ 6 × 1 × 30 Mpa 1.1 Φ 6 × II × 60Mpa 1.31 Φ 8 × I × 25Mpa 1.12 Φ 8 × II × 60Mpa 1.43 φ10× I × 20Mpa 1.25 φ10× II × 53Mpa 1.97 φ10× III × 53Mpa 2.29 φ10×4sp×70MPa 2.86 Φ 10 × 6 sp × 80 MPa 8.57 φ1 3 × I × 16Mpa 1.52 φ1 3 × II × 36Mpa 1.97 φ1 3 × III × 36Mpa 3 φ13×4sp×60MPa 3.57 φ13× 6 sp× 80 MPa 9.14 φ1 6 × I × 13Mpa 1.8 φ1 6 × II × 34Mpa 2.28 φ1 6 × III × 34Mpa 3.57 φ16×4sp×55MPa 4.43 φ19× 6 sp× 80 MPa 7 φ1 9 × I × 12Mpa 2.23 φ1 9 × II × 34Mpa 2.91 φ1 9 × III × 34Mpa 4.28 φ19×4sp×46MPa 5 φ25× 6 sp× 70 MPa 12.86 Φ 25 × I × 10Mpa 2.9 Φ 25 × II × 21Mpa 3.6 Φ 25 × III × 21Mpa 5.14 φ25×4sp×40MPa 6.43 φ32× 6 sp× 65 MPa 14.29 Φ 32 × I × 7Mpa 3.43 Φ 32 × II × 14Mpa 4.3 Φ 32 × III × 14Mpa 7.14 φ32×4sp×40MPa 8.29 φ38× 6 sp× 60 MPa 17.14 Φ 38 × I × 5Mpa 4 Φ 38 × II × 10Mpa 5.14 Φ 38 × III × 12Mpa 8 φ38×4sp×35MPa 10.29 φ51× 6 sp× 52 MPa 21.43 Φ 51 × I × 4Mpa 4.85 Φ 51 × II × 10Mpa 3.28 Φ 51 × III × 12Mpa 9.43 φ51×4sp×35MPa 14.29 Φ 64 × 6 sp × 52 MPa 34.29 Φ 64 × I × 4Mpa 7.14 Φ 64 × II × 6Mpa 9.6 φ64×4sp×35MPa 22.86 Double layer winding unit price Φ76 × I × 4Mpa 10 Φ 76 × II × 6Mpa 11.43 φ76×4sp × 25MPa 28.57 76*2sp*15MPa 31.43 Φ 102 × I × 2Mpa 12 Φ 102 × II × 5Mpa 13.7 102*2sp*15MPa 28.6 Φ 152 × II × 5Mpa 25.7 127*2sp*15MPa 45.7 Φ 203 × II × 5Mpa 51.43 152*2sp*10MPa 65.7 203*2sp*8MPa 128.57

Classification：

Rubber Products

86-13722810322

Kathyangiulo@gmail.com

Inquiry

Detailed

Specifications (one layer of weaving)	Unit Price（USD）	Specification	unit price	Three-layer braid	unit price	Specifications (four-layer winding)	unit price	Six-layer winding	unit price
Φ 6 × 1 × 30 Mpa	1.1	Φ 6 × II × 60Mpa	1.31
Φ 8 × I × 25Mpa	1.12	Φ 8 × II × 60Mpa	1.43
φ10× I × 20Mpa	1.25	φ10× II × 53Mpa	1.97	φ10× III × 53Mpa	2.29	φ10×4sp×70MPa	2.86	Φ 10 × 6 sp × 80 MPa	8.57
φ1 3 × I × 16Mpa	1.52	φ1 3 × II × 36Mpa	1.97	φ1 3 × III × 36Mpa	3	φ13×4sp×60MPa	3.57	φ13× 6 sp× 80 MPa	9.14
φ1 6 × I × 13Mpa	1.8	φ1 6 × II × 34Mpa	2.28	φ1 6 × III × 34Mpa	3.57	φ16×4sp×55MPa	4.43	φ19× 6 sp× 80 MPa	7
φ1 9 × I × 12Mpa	2.23	φ1 9 × II × 34Mpa	2.91	φ1 9 × III × 34Mpa	4.28	φ19×4sp×46MPa	5	φ25× 6 sp× 70 MPa	12.86
Φ 25 × I × 10Mpa	2.9	Φ 25 × II × 21Mpa	3.6	Φ 25 × III × 21Mpa	5.14	φ25×4sp×40MPa	6.43	φ32× 6 sp× 65 MPa	14.29
Φ 32 × I × 7Mpa	3.43	Φ 32 × II × 14Mpa	4.3	Φ 32 × III × 14Mpa	7.14	φ32×4sp×40MPa	8.29	φ38× 6 sp× 60 MPa	17.14
Φ 38 × I × 5Mpa	4	Φ 38 × II × 10Mpa	5.14	Φ 38 × III × 12Mpa	8	φ38×4sp×35MPa	10.29	φ51× 6 sp× 52 MPa	21.43
Φ 51 × I × 4Mpa	4.85	Φ 51 × II × 10Mpa	3.28	Φ 51 × III × 12Mpa	9.43	φ51×4sp×35MPa	14.29	Φ 64 × 6 sp × 52 MPa	34.29
Φ 64 × I × 4Mpa	7.14	Φ 64 × II × 6Mpa	9.6			φ64×4sp×35MPa	22.86	Double layer winding	unit price
Φ76 × I × 4Mpa	10	Φ 76 × II × 6Mpa	11.43			φ76×4sp × 25MPa	28.57	762sp15MPa	31.43
Φ 102 × I × 2Mpa	12	Φ 102 × II × 5Mpa	13.7					1022sp15MPa	28.6
		Φ 152 × II × 5Mpa	25.7					1272sp15MPa	45.7
		Φ 203 × II × 5Mpa	51.43					1522sp10MPa	65.7
								2032sp8MPa	128.57
